Product Details:
Payment & Shipping Terms:
|

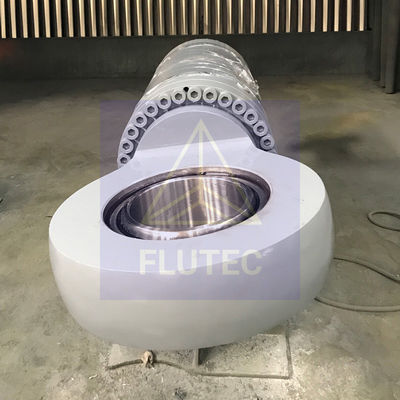

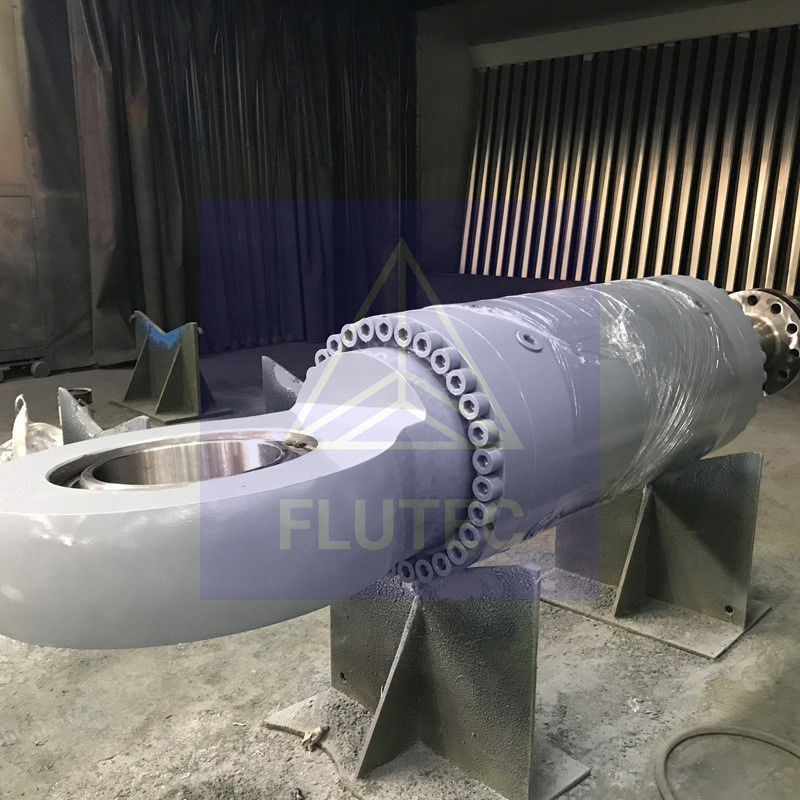

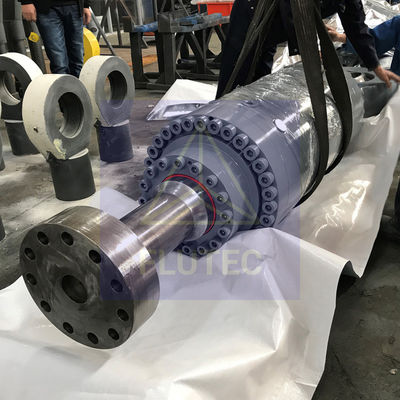

Model NO.: | 380/135x425 | Structure: | Piston Type |
---|---|---|---|
Material: | Carbon Steel | Transport Package: | Standard Seaworthy Wooden Case |
Trademark: | FLUTEC | Origin: | Jiangsu, China |
HS Code: | 8412210090 | Supply Ability: | 10000 |
Certification: | ISO9001, Dnv, SGS, BV, ABS, Gl | Pressure: | Medium Pressure |
Work Temperature: | Normal Temperature | Acting Way: | Double Acting |
Working Method: | Straight Trip | Adjusted Form: | Regulated Type |

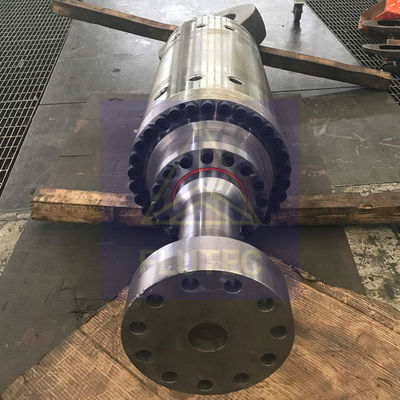

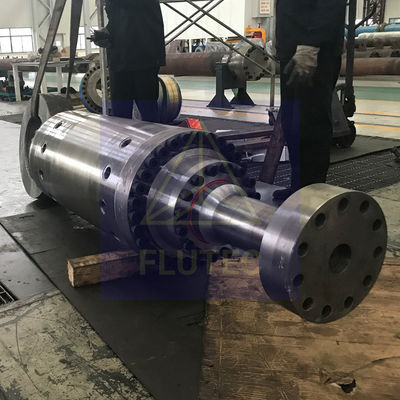

Customization: | Available | Customized Request | Name: | Industrial Hydraulic Cylinder |
High Light: | SGS Bolted Head Hydraulic Cylinders,FLUTEC Bolted Head Hydraulic Cylinders,Bolted Head Hydraulic Oil Cylinder |
Technical Data
Cylinder Type | Mill type, Head Bolted, Base Welded |
Bore Diameter | Up to 2500mm |
Rod Diameter | Up to 2000mm |
Stroke Length | Up to 20,000mm |
Piston Rod Material | AISI 1045, AISI 4140, AISI 4340, 20MnV6 |
Rod Surface Treatment | Hard chrome plated, Chrome/Nickel plated, Ceramic coated |
Tube Material | Carbon steel AISI1045 or ST52.3, Alloy steel AISI4140, Stainless steel 2Cr13 or 1Cr17Ni2 |
Tube Surface Painting | Colors according to RAL and thickness according to customer needs |
Mounting Type | Clevis, Cross tube, Flange, Trunnion, Tang, Thread |
Design Pressure | Up to 40Mpa |
Seal Kits Type | PARKER, MERKEL, HALLITE, NOK, TRELLEBORG |
Quality Assurance | 1 year |
Certificate | SGS, BV, ABS ,GL, DNV etc. |
Application | Heavy industry, steel mill, Hydraulic press, etc. |
Quality Process | Our quality management system is certified to ISO 9001 |
Quality control standards include material records, process control plans, | |
Manufacturing approvals and inspection data | |
Testing Standards | All products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications |
Static and dynamic pressure testing. | |
Ultraviolet leak detection technology. | |
Non-destructive testing. | |
Fluid Cleanliness | Real-time monitoring and test phase documentation |
Independent sampling and oil diagnostic control |
